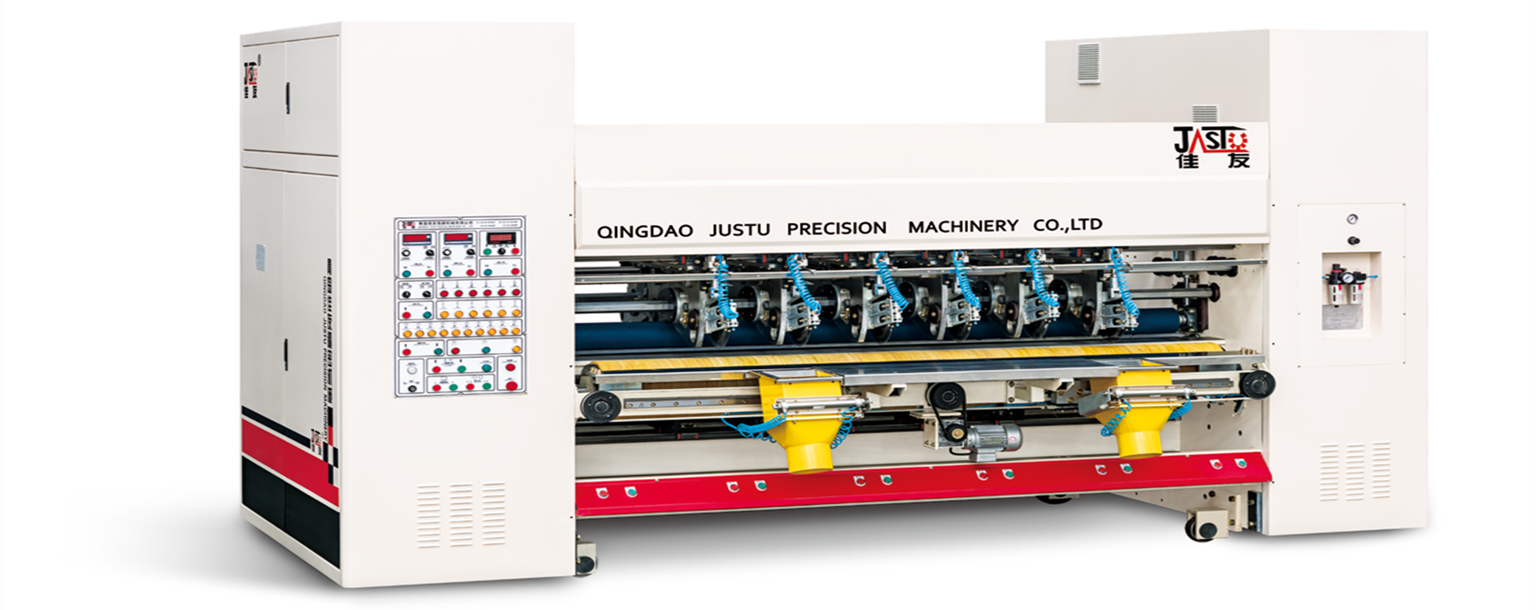

As an important piece of equipment in corrugated board line dry end, the equipment can accurately score and precisely slit boards and with use of computerized control and auto order changing functions , wastes caused by shutdown are reduced and the production efficiency is improved.
Electric & Pneumatic part
French Schneider
Li Jiu VF Motor
Pneumatic components from SMC, Air Tac etc.
Actuation Part
Supporting parts are manufactured with high quality steels
ZG230-450 cast blade and scorer moving plate
Precisely-drawn high-quality steel transmission shaft
High quality tungsten alloy blade
Transmission Part
Imported synchronous belt
HIWIN, BEST ball screw shaft, linear guide rail
NSK, IKO, HRB precision bearings
Control Part
Order Arrangement Drive: Servo control
Blade/Scorer Drive: Toshiba or Schneider frequency
converter
Operational Monitoring: Schneider touch screen or
industrial computer, and OMRON vision sensor
Monitor Control: Schneider PLC, Sick series sensor
Low-voltage Apparatus: Schneider

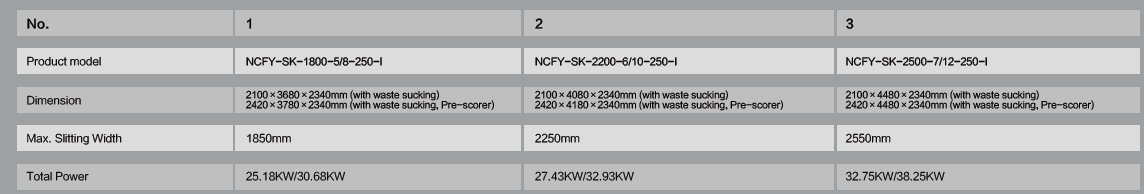

The control system of master and slave computer is formed by imported high quality industrial computer and high performance
PLC;
Due to high quality linear guides and high-precision ball screw transmission assembly, the slitter and scorer could have the
positioning accuracy within +/-0.5mm.
Multiple groups of orders can be stored to ensure the order could be changed automatically without stop or by hand.
Automatically track the speed of production line to be synchronous with it and could be able to connect with production
management system due to strong compatibility;
Order can be quickly changed with changing time being 3-6 seconds (servo type: 3 seconds); while two machines are used at
the same time, order could be changed quickly with less waste boards.
Adopt thin-type tungsten steel alloy blade which is very sharp and could serve more than 8 million meters;
Adopt patented passive grinder which is simple in structure and easy in maintenance;
Grinding can be finished automatically by computer or by hand, so that they can be grinded while slitting at the same time, and
the production efficiency is improved;
Select three types of scorers: convex to concave (three layer board), convex to concave (five layer board) and convex to flat,
which can be switched electrically;
Depths of scorings are automatically controlled by computer to have good line shapes and ease of formation.
Due to the imported synchronous belt conveying device, the precision is higher, the service life is longer and the noise is lower.
